ANDREAS KASINAKIS

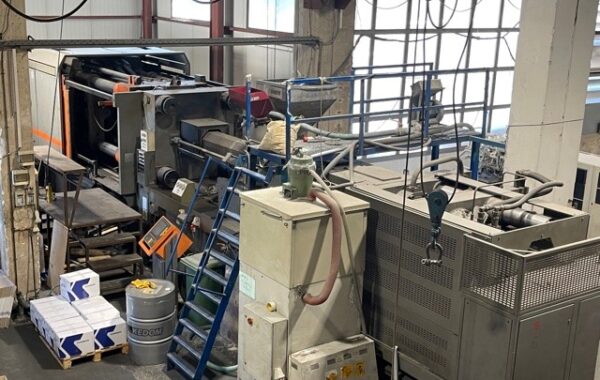

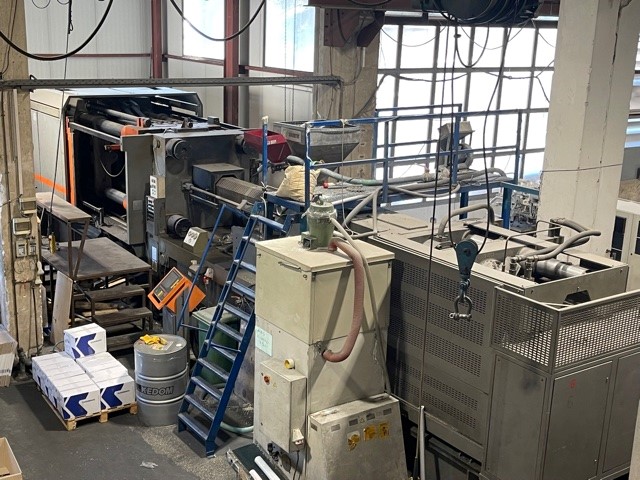

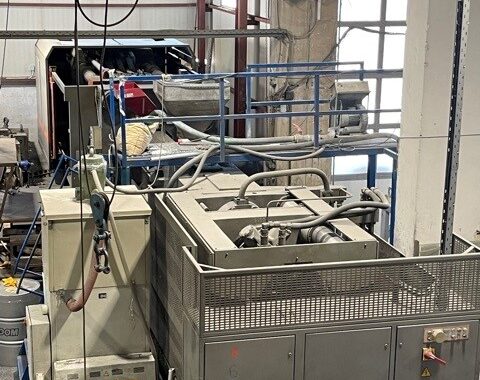

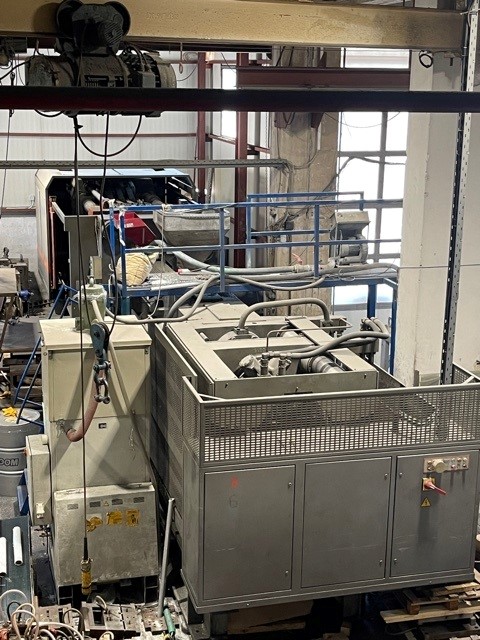

Sandretto serrie sette 800 • Screw diameter: 105mm • Calculated shot volume: 4330cm3 • Shot weight (ps): 4150gr • Pressure on material: 1500bar • Max injection speed: 830 cm3/s • Screw length: 20L/D • Plasticizing capacity: 158.3gr/s • Screw hydraulic motor power: 150Hp • Screw speed: 0-180turn/1’ • Torque on screw: 6050Nm • Heating zones: 5 • Total heating power: 47.5 Kw • Mould clamping force: 8000KN • Fixed platen travel: 1000mm • Mould min. – max. thickness: 300mm - 1000mm • Passage between bars: 920mm x 920mm   The Latest News from the UK and Around the World
